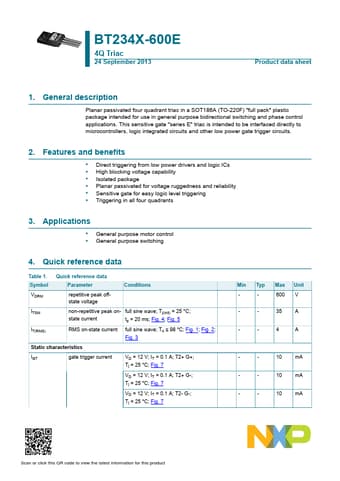

BT234X-600E Datasheet, Triac, NXP

BT234X-600E Features

• Triac
• Direct triggering from low power drivers and logic ICs
• High blocking voltage capability
• Isolated package
• Planar passivated for voltage ruggedness

PDF File Details

Part number:

BT234X-600E

Manufacturer:

NXP ↗

File Size:

178.91kb

Download:

📄 Datasheet

Description:

4q triac. Planar passivated four quadrant triac in a SOT186A (TO-220F) "full pack" plastic package intended for use in general purpose bidirect

BT234X-600E Application

• Applications This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other lo
