BT234-800D - 4Q Triac

Product Overview

NXP

BT234-800D 4Q Triac by NXP - Datasheet Preview — Datasheet preview – BT234-800D

Datasheet Details

Part number	BT234-800D
Manufacturer	NXP
File Size	179.94 KB
Description	4Q Triac
Datasheet	BT234-800D Datasheet

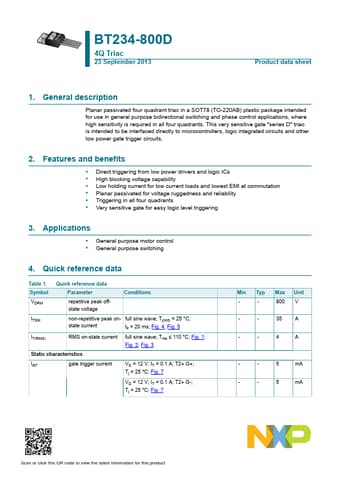

Additional preview pages of the BT234-800D datasheet.

Product details

Description

Planar passivated four quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Features

Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
Low holding current for low current loads and lowest EMI at commutation.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate for easy logic level triggering 3.
