BT234W-800ET, 4Q Triac

BT234W-800ET 4Q Triac Rev.01 - 09 January 2025 Product data sheet 1.General .
Planar passivated sensitive gate four quadrant triac in a SOT223 surface-mountable plastic package.

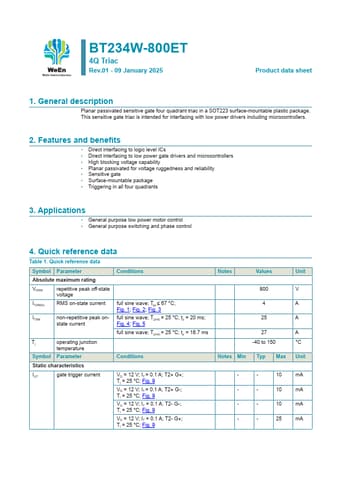

datasheet Preview Page 1 from Datasheet4u.com

BT234W-800ET-WeEn.pdf

BT234W-800ET Datasheet Preview — Preview of BT234W-800ET PDF

Datasheet Details

Part number:

BT234W-800ET

Manufacturer:

WeEn

File Size:

562.44 KB

Description:

4Q Triac

Features

* Direct interfacing to logic level ICs
* Direct interfacing to low power gate drivers and microcontrollers
* High blocking voltage capability
* Planar passivated for voltage ruggedness and reliability
* Sensitive gate
* Surface-mountable package

Applications

* General purpose low power motor control
* General purpose switching and phase control 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions VDRM IT(RMS) ITSM repetitive peak off-state voltage RMS on-state current non-repetiti
