BT232-800ET - 4Q Triac

Datasheet Summary

Description

Planar passivated sensitive gate four quadrant triac in a TO92 plastic package intended for use in applications requiring direct interfacing to logic ICs and low power gate drivers.

2.

Features

  • Direct interfacing to logic level ICs.
  • Direct interfacing to low power gate drive circuits.
  • High blocking voltage capability.
  • Planar passivated for voltage ruggedness and reliability.
  • Sensitive gate in four quadrants.
  • Triggering in all four quadrants 3.

📥 Download Datasheet

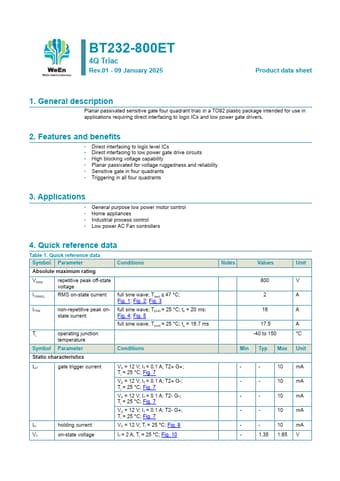

Datasheet preview – BT232-800ET

Datasheet Details

Part number BT232-800ET
Manufacturer WeEn
File Size 574.32 KB
Description 4Q Triac
Datasheet download datasheet BT232-800ET Datasheet
Additional preview pages of the BT232-800ET datasheet.

📁 Similar Datasheet

Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
BT232-800ET 4Q Triac Rev.01 - 09 January 2025 Product data sheet 1. General description Planar passivated sensitive gate four quadrant triac in a TO92 plastic package intended for use in applications requiring direct interfacing to logic ICs and low power gate drivers. 2. Features and benefits • Direct interfacing to logic level ICs • Direct interfacing to low power gate drive circuits • High blocking voltage capability • Planar passivated for voltage ruggedness and reliability • Sensitive gate in four quadrants • Triggering in all four quadrants 3. Applications • General purpose low power motor control • Home appliances • Industrial process control • Low power AC Fan controllers 4. Quick reference data Table 1.
