BT236-D Datasheet, Triacs, SemiWell Semiconductor

BT236-D Features

• Triacs Repetitive Peak Off-State Voltage : 600V R.M.S On-State Current ( IT(RMS)= 6 A )
• High Commutation dv/dt
• Sensitive Gate Triggering 4 Mode
• Non-isolated Type

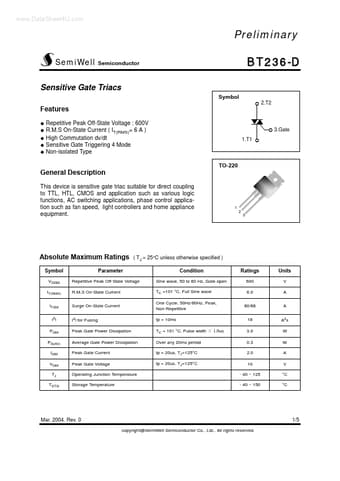

PDF File Details

Part number:

BT236-D

Manufacturer:

SemiWell Semiconductor

File Size:

612.07kb

Download:

📄 Datasheet

Description:

Sensitive gate triacs. This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, A

BT236-D Application

• Applications phase control application such as fan speed, light controllers and home appliance equipment. TO-220 1 2 3 Absolute Maximum Ratings
