MD7601A30, CMOS Voltage Regulator

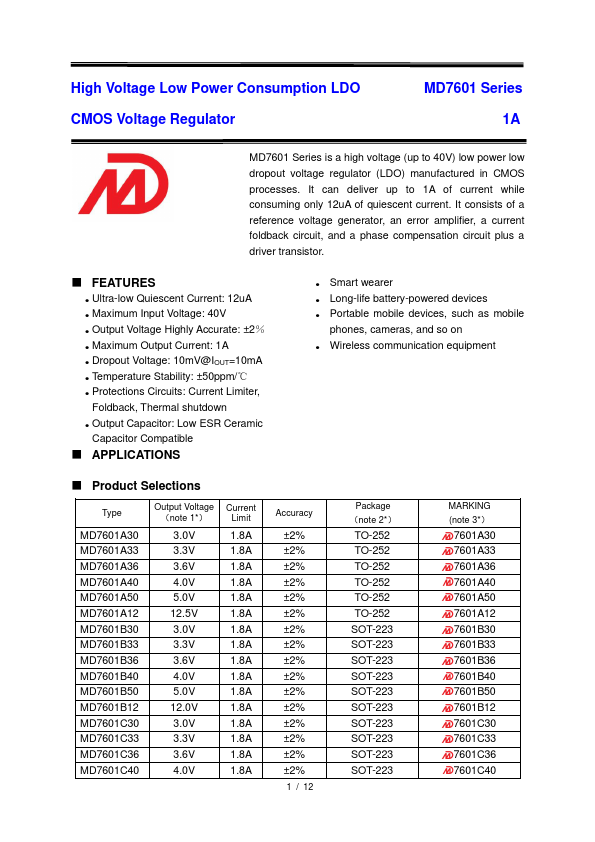

High Voltage Low Power Consumption LDO CMOS Voltage Regulator MD7601 Series 1A MD7601 Series is a high voltage (up to 40V) low power low dropout vol.

datasheet Preview Page 1 from Datasheet4u.com

MD7601A30-MINGDAMICROTRONICS.pdf

MD7601A30 Datasheet Preview — Preview of MD7601A30 PDF

Datasheet Details

Part number:

MD7601A30

Manufacturer:

MINGDA MICROTRONICS

File Size:

1.20 MB

Description:

CMOS Voltage Regulator

Features

* Ultra-low Quiescent Current: 12uA
* Maximum Input Voltage: 40V
* Output Voltage Highly Accurate: ±2％
* Maximum Output Current: 1A
* Dropout Voltage: 10mV@IOUT=10mA
* Temperature Stability: ±50ppm/℃
* Protections Circuits: Current Limiter, Foldback, Thermal shutdown

Applications

* Smart wearer
* Long-life battery-powered devices
* Portable mobile devices, such as mobile phones, cameras, and so on
* Wireless communication equipment
* Product Selections Type MD7601A30 MD7601A33 MD7601A36 MD7601A40 MD7601A50 MD7601A12 MD7601B30 MD7601B33 MD7601B36 MD7601
