MD7601A40, MD7601A30, CMOS Voltage Regulator

High Voltage Low Power Consumption LDO CMOS Voltage Regulator MD7601 Series 1A MD7601 Series is a high voltage (up to 40V) low power low dropout vol.

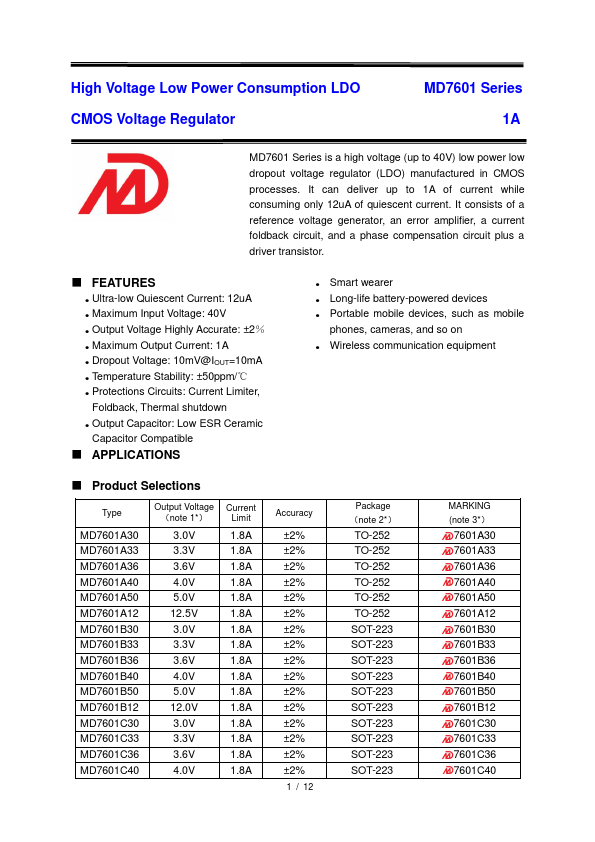

datasheet Preview Page 1 from Datasheet4u.com

MD7601A30-MINGDAMICROTRONICS.pdf

MD7601A40 Datasheet Preview — This datasheet PDF includes multiple part numbers: MD7601A40, MD7601A30. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MD7601A40, MD7601A30

Manufacturer:

MINGDA MICROTRONICS

File Size:

1.20 MB

Description:

CMOS Voltage Regulator

Note:

This datasheet PDF includes multiple part numbers: MD7601A40, MD7601A30.
Please refer to the document for exact specifications by model.

Features

* Ultra-low Quiescent Current: 12uA
* Maximum Input Voltage: 40V
* Output Voltage Highly Accurate: ±2％
* Maximum Output Current: 1A
* Dropout Voltage: 10mV@IOUT=10mA
* Temperature Stability: ±50ppm/℃
* Protections Circuits: Current Limiter, Foldback, Thermal shutdown

Applications

* Smart wearer
* Long-life battery-powered devices
* Portable mobile devices, such as mobile phones, cameras, and so on
* Wireless communication equipment
* Product Selections Type MD7601A30 MD7601A33 MD7601A36 MD7601A40 MD7601A50 MD7601A12 MD7601B30 MD7601B33 MD7601B36 MD7601
