MD7612C50, MD7612 CMOS Voltage Regulator

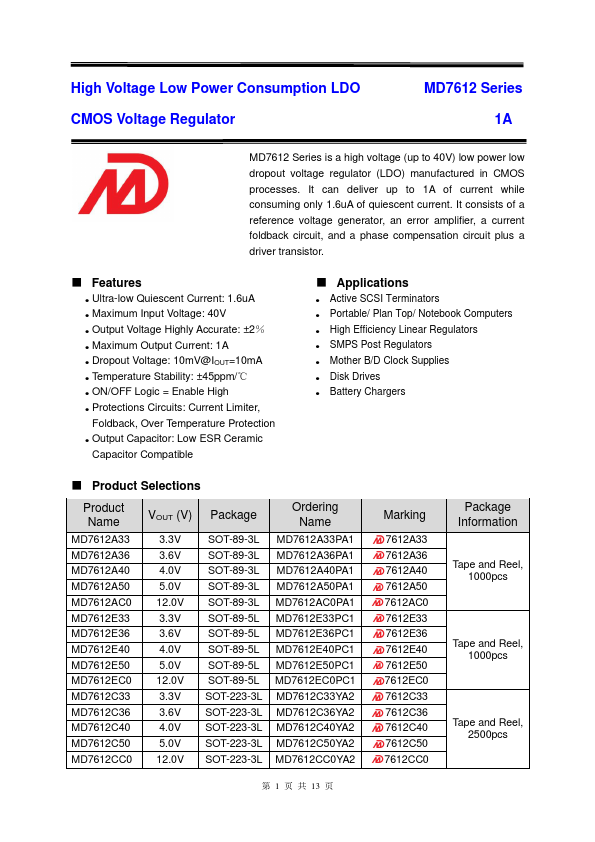

📥 Download Datasheet  Datasheet Preview Page 1

Description

High Voltage Low Power Consumption LDO CMOS Voltage Regulator MD7612 Series 1A MD7612 Series is a high voltage (up to 40V) low power low dropout vol.
Power Input Pin.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MD7612C50, MD7612. Please refer to the document for exact specifications by model.

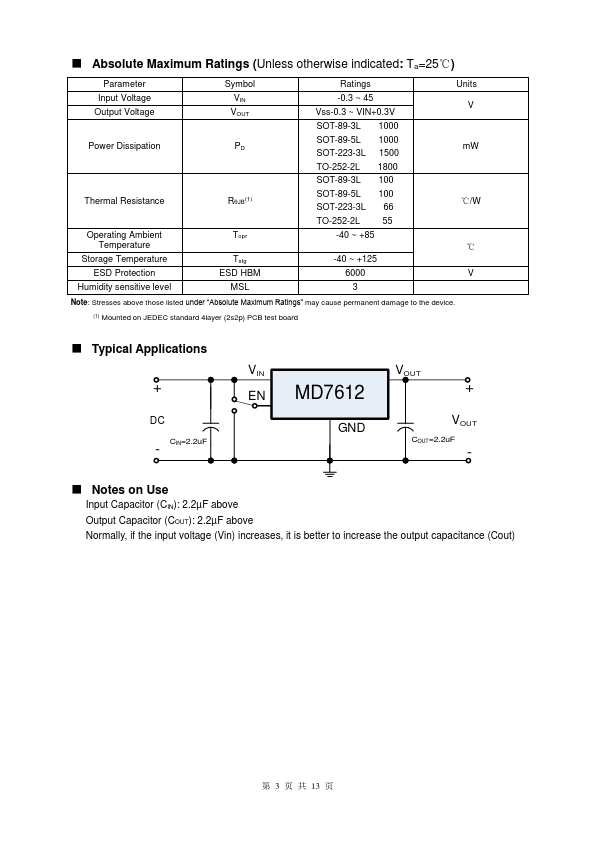

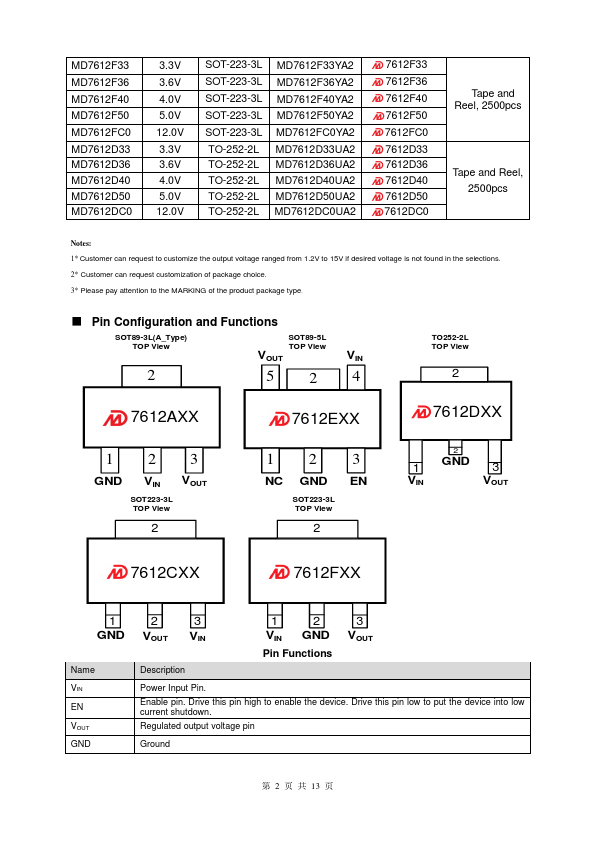

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MD7612C50, MD7612
Manufacturer
MINGDA MICROTRONICS
File Size
1.17 MB
Datasheet
MD7612-MINGDAMICROTRONICS.pdf
Description
CMOS Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: MD7612C50, MD7612.
Please refer to the document for exact specifications by model.

Features

* Ultra-low Quiescent Current: 1.6uA
* Maximum Input Voltage: 40V
* Output Voltage Highly Accurate: ±2%
* Maximum Output Current: 1A
* Dropout Voltage: 10mV@IOUT=10mA
* Temperature Stability: ±45ppm/℃
* ON/OFF Logic = Enable High
* Protections Circuits: Current Limite

Applications

* Active SCSI Terminators
* Portable/ Plan Top/ Notebook Computers
* High Efficiency Linear Regulators
* SMPS Post Regulators
* Mother B/D Clock Supplies
* Disk Drives
* Battery Chargers
* Product Selections Product Name MD7612A33 MD7612A36 MD7612A40 MD7612A50 MD761

MD7612C50 Distributors
