MD7612F40, MD7612 CMOS Voltage Regulator

MINGDA MICROTRONICS

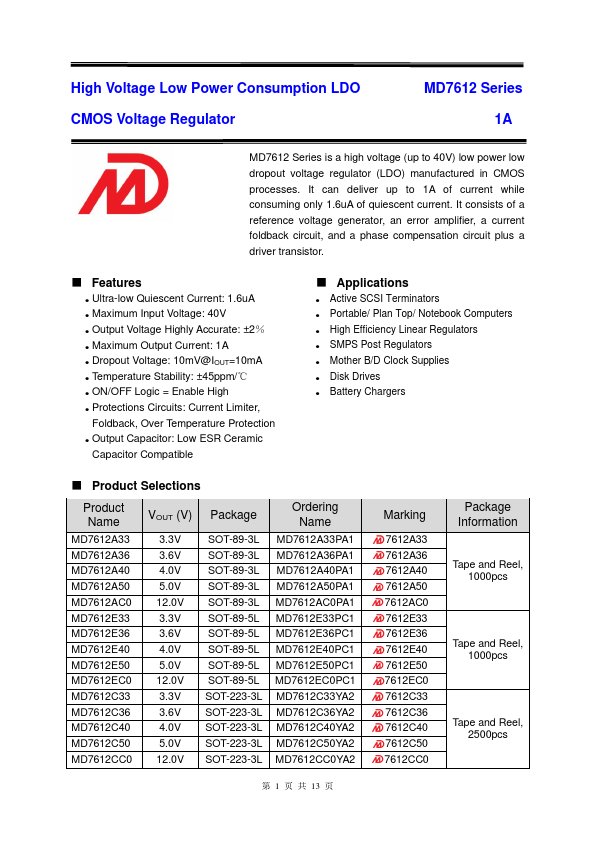

Description

High Voltage Low Power Consumption LDO CMOS Voltage Regulator MD7612 Series 1A MD7612 Series is a high voltage (up to 40V) low power low dropout vol.

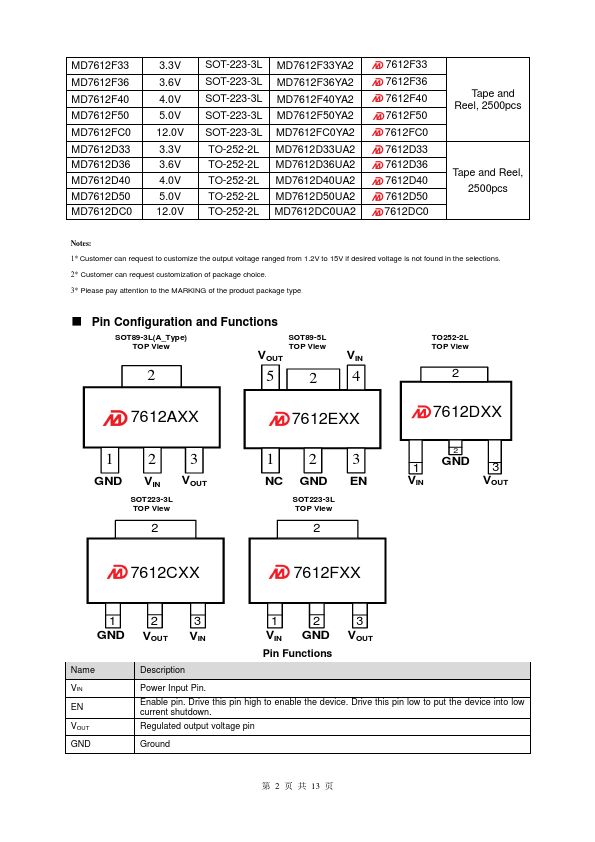

Power Input Pin.

📥 Download Datasheet

MD7612F40 Datasheet Preview — This datasheet PDF includes multiple part numbers: MD7612F40, MD7612. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MD7612F40, MD7612
Manufacturer: MINGDA MICROTRONICS
File Size: 1.17 MB
Datasheet: MD7612-MINGDAMICROTRONICS.pdf
Description: CMOS Voltage Regulator
Note: This datasheet PDF includes multiple part numbers: MD7612F40, MD7612.
Please refer to the document for exact specifications by model.

Features

* Ultra-low Quiescent Current: 1.6uA
* Maximum Input Voltage: 40V
* Output Voltage Highly Accurate: ±2％
* Maximum Output Current: 1A
* Dropout Voltage: 10mV@IOUT=10mA
* Temperature Stability: ±45ppm/℃
* ON/OFF Logic = Enable High
* Protections Circuits: Current Limite

Applications

* Active SCSI Terminators
* Portable/ Plan Top/ Notebook Computers
* High Efficiency Linear Regulators
* SMPS Post Regulators
* Mother B/D Clock Supplies
* Disk Drives
* Battery Chargers
* Product Selections Product Name MD7612A33 MD7612A36 MD7612A40 MD7612A50 MD761
