MD8530 CMOS Voltage Regulator

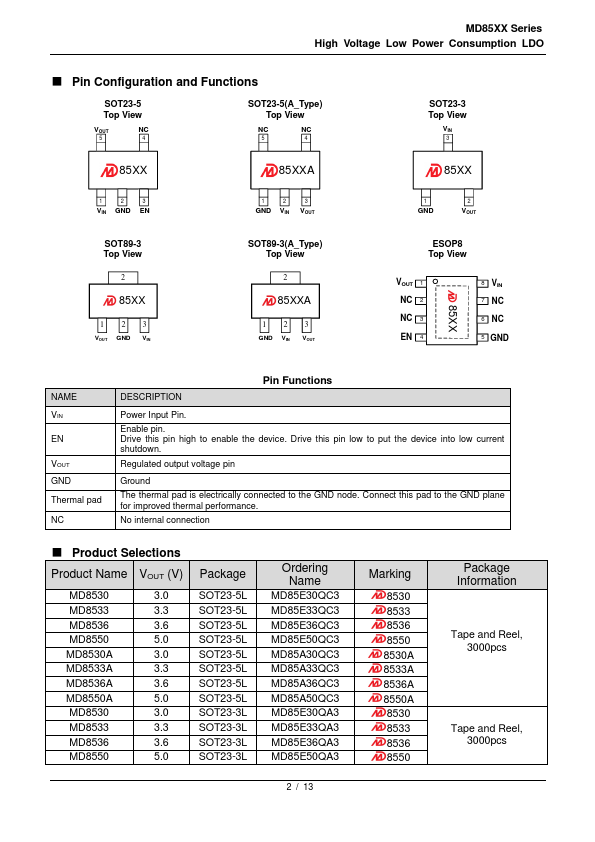

Power Input Pin. Enable pin. Drive this pin high to enable the device. Drive this pin low to put the device into low current shutdown. Regulated output voltage pin Ground The thermal pad is electrically connected to the GND node. Connect this pad to the GND plane for improved thermal performance. No.

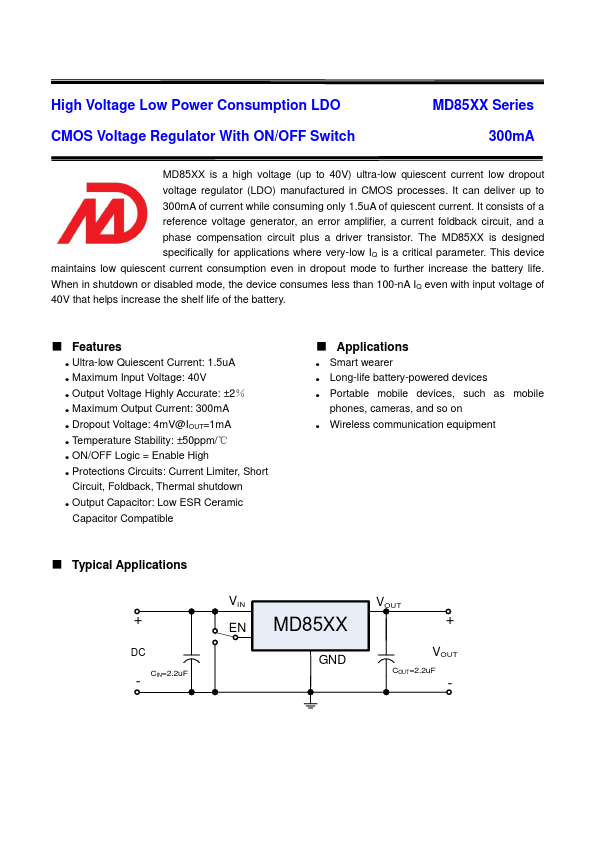

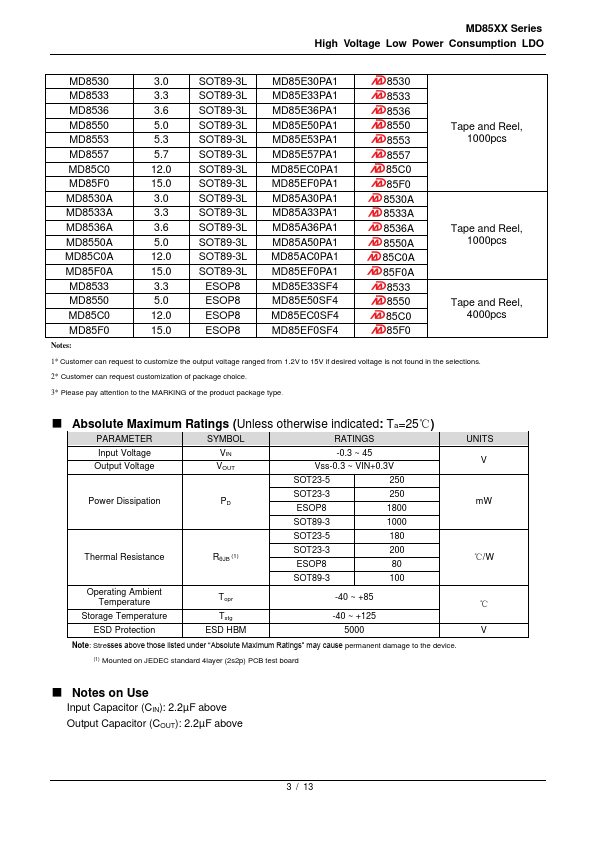

High Voltage Low Power Consumption LDO CMOS Voltage Regulator With ON/OFF Switch MD85XX Series 300mA MD85XX is a high voltage (up to 40V) ultra-low quiescent current low dropout voltage regulator (LDO) manufactured in CMOS processes. It can deliver up to 300mA of current while consuming only 1.5uA of quiescent current. It consists of a reference voltage generator, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor. The MD85XX is designed s.

MD8530 Features

* Ultra-low Quiescent Current: 1.5uA

* Maximum Input Voltage: 40V

* Output Voltage Highly Accurate: ±2％

* Maximum Output Current: 300mA

* Dropout Voltage: 4mV@IOUT=1mA

* Temperature Stability: ±50ppm/℃

* ON/OFF Logic = Enable High

* Protections Circuits: Current Limit
