MD8530A, MD8530 - CMOS Voltage Regulator

Name: MD8530A
SKU: MD8530A-1582474

MINGDA MICROTRONICS

📥 Download Datasheet

MD8530A Datasheet Preview — This datasheet PDF includes multiple part numbers: MD8530A, MD8530. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MD8530A, MD8530
Manufacturer	MINGDA MICROTRONICS
File Size	1.12 MB
Description	CMOS Voltage Regulator
Datasheet	MD8530-MINGDAMICROTRONICS.pdf
Note	This datasheet PDF includes multiple part numbers: MD8530A, MD8530. Please refer to the document for exact specifications by model.

MD8530A Product details

Description

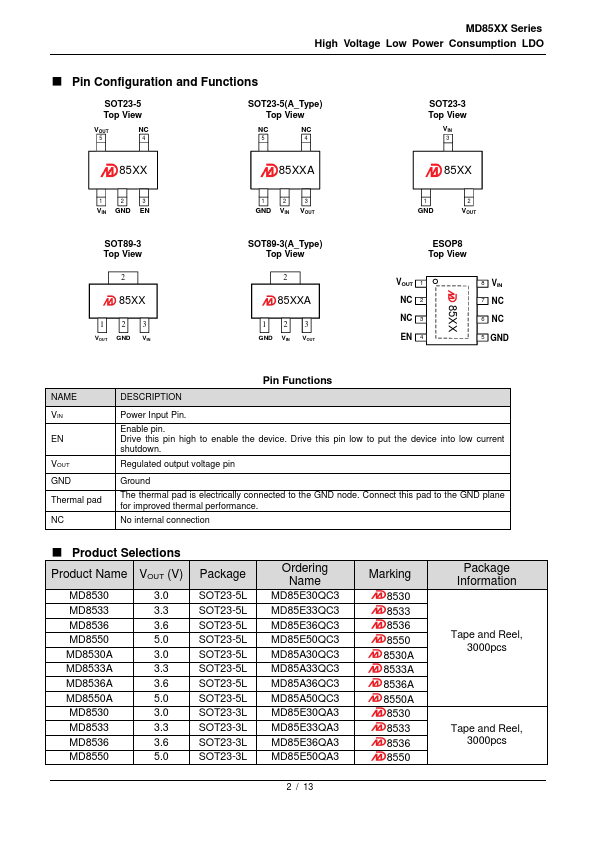

Power Input Pin. Product Selections Product Name VOUT (V) MD8530 3.0 MD8533 3.3 MD8536 3.6 MD8550 5.0 MD8530A 3.0 MD8533A 3.3 MD8536A 3.6 MD8550A 5.0 MD8530 3.0 MD8533

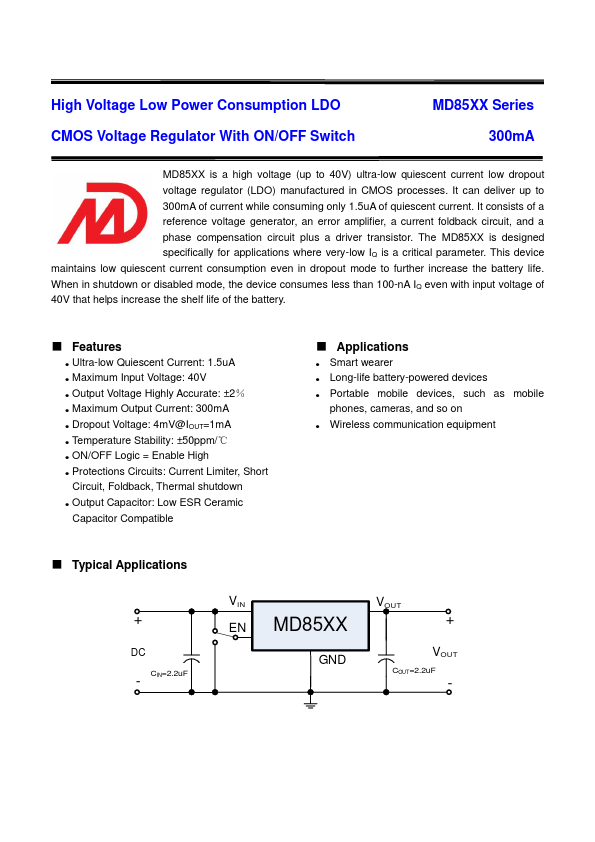

Features

s.
Ultra-low Quiescent Current: 1.5uA.
Maximum Input Voltage: 40V.
Output Voltage Highly Accurate: ±2％.
Maximum Output Current: 300mA.
Dropout Voltage: 4mV@IOUT=1mA.
Temperature Stability: ±50ppm/℃.
ON/OFF Logic = Enable High.
Protections Circuits: Current Limiter, Short Circuit, Foldback, Thermal shutdown.
Output Capacitor: Low ESR Ceramic Capacitor Compatible.
