MKZI10 - DC/DC CONVERTER

The MKZI10 by MINMAX is a DC/DC CONVERTER. Below is the official datasheet preview.

📥 Download Datasheet

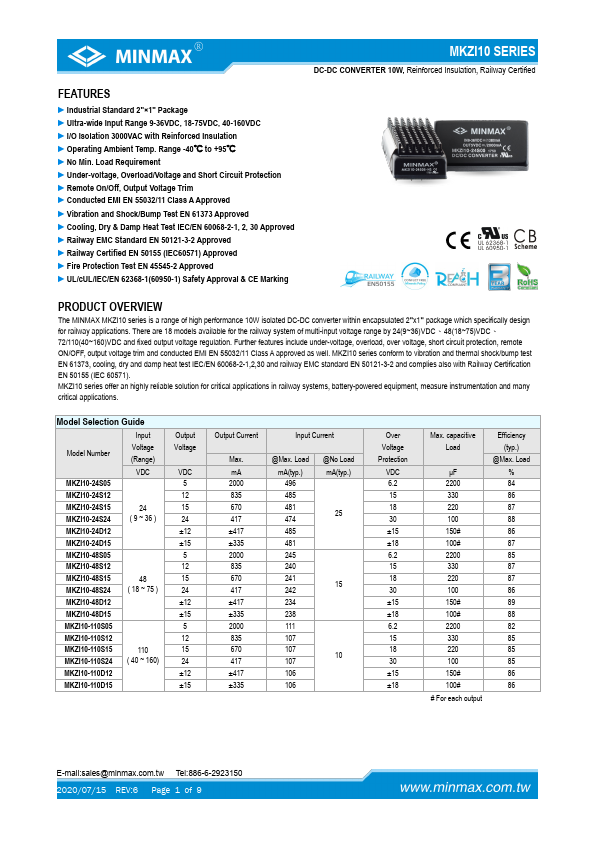

MKZI10 DC/DC CONVERTER by MINMAX - Datasheet Preview — Official preview page of the MKZI10 DC/DC CONVERTER datasheet (MINMAX).

Datasheet Details

Part number	MKZI10
Manufacturer	MINMAX
File Size	554.36 KB
Description	DC/DC CONVERTER
Datasheet	MKZI10-MINMAX.pdf
Additional preview pages of the MKZI10 datasheet.

MKZI10 Product details

Features

Industrial Standard 2"×1" Package.
Input Range 9-36VDC, 18-75VDC, 40-160VDC.
I/O Isolation 3000VAC with Reinforced Insulation.
Operating Temp. Range -40°C to +95°C.
No Min. Load Requirement.
Overload/Voltage and Short Circuit Protection.
Remote On/Off, Output Voltage Trim.
Conducted EMI meets EN55022 Class A & FCC Level A.
Vibration and Thermal Shock meets EN61373.
Cooling, Dry & Damp Heat Test meet IEC/EN60068.
Railway EMC Standard meets EN50121-3-2.
