E42F-005-8904A, E42F - USB Series Mini-B Connectors

MITSUMI

Datasheet Details

Part number	E42F-005-8904A, E42F
Manufacturer	MITSUMI
File Size	157.67 KB
Description	USB Series Mini-B Connectors
Datasheet	E42F_MITSUMI.pdf
Note	This datasheet PDF includes multiple part numbers: E42F-005-8904A, E42F. Please refer to the document for exact specifications by model.

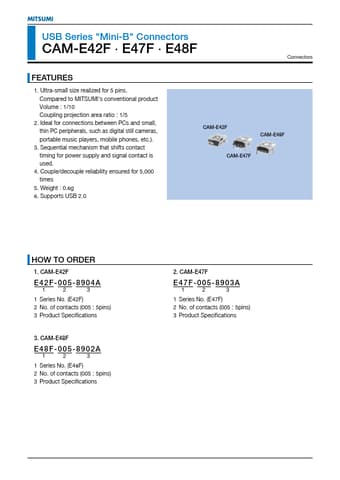

1. Ultra-small size realized for 5 pins. Compared to MITSUMl's conventional product Volume : 1/10 Coupling projection area ratio : 1/5 2. Ideal for connections between PCs and small, thin PC peripherals, such as digital still cameras, portable music players, mobile phones, etc. ). 3. Sequential mechanism that shifts contact timing for power supply and signal contact is used. 4. Couple/decouple reliability ensured for 5,000 times 5. Weight : 0.6g 6. Supports USB 2.0 Connectors CAM-E42F CAM-E48F.
