E420 Datasheet - Siliconix

E420 - dual n-channel JFET

matched dual n-channel JFETs designed for VHF/UHF Amplifiers H Performance Curves NZF See Section 4 BENEFITS High Gain gfs = 4500 j.Lmho Minimum Dual Version of E300 with Matched Gate-to-Source Voltage ABSOLUTE MAXIMUM RATINGS (25°C) Gate-To-Gate Voltage ±50 V Gate Drain or Gate-Source Voltage -25 V Gate Cu rrent 50mA Total Package Dissipation (25°C Free-Air Temperature) 350mW Power Derating (to +125°C) 3.5 mWrC Storage Temper

E420-Siliconix.pdf

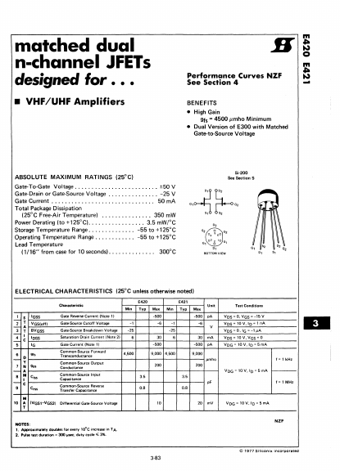

Preview of E420 PDF

Datasheet Details

Part number:

E420

Manufacturer:

Siliconix

File Size:

52.73 KB

Description:

Dual n-channel jfet.
