MM1309BF

Protection of Lithium Ion Batteries (three cells in series)

MM1309BF Features

* 1. 2. 3. 4. 5. 6. 7. 8. Current consumption (for VCC pin) Current consumption (for VCC pin) Current consumption (for VCC pin) Current consumption (for VCC pin) Current consumption (for BATH pin) Current consumption (for BATH pin) Current consumption (for BATH pin) Charge prohibit voltage (Ta=-20°C~+

MM1309BF General Description

No. 1 2 3 4 Pin DCHG N. C OV GND BATL BATM BATM VCC Input Input Input Output FET drive pin for overcharge control Negative connection pin for the low side battery. Also, IC GND pin. (IC reference power supply pin) Positive connection pin for the low side battery, and negative connection pin for the .

MM1309BF Datasheet (137.28 KB)

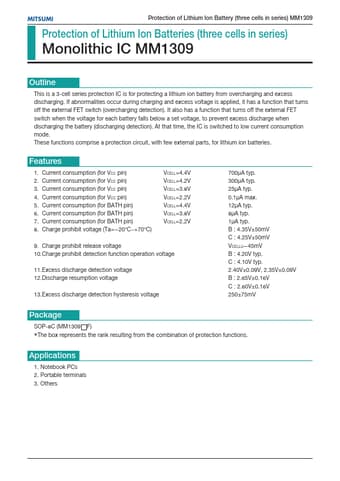

Preview of MM1309BF PDF
