MM1311 Datasheet, Mm1311, ETC

MM1311 Features

  • Mm1311 1. Serial control by I2C BUS. 2. 4 inputs, 1 output. 3. Video and audio system switches can be controlled independently. 4. 6 dB amplifier built in to video system. 5. Built-in Y/C MIX

PDF File Details

Part number:

MM1311

Manufacturer:

ETC

File Size:

268.43kb

Download:

📄 Datasheet

Description:

I2c bus control 4-input 1-output av switch monolithic ic mm1311. Pin No. 31 1 7 13 3 9 22 5 11 20 Name MTV-V V1-V V2-V V3-V V1-Y V2-Y YIN V1-C V2-C CIN BIAS 24 23 LOUT ROUT Internal equivalent circu

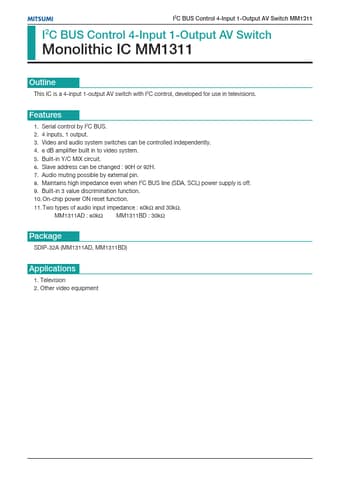

Datasheet Preview: MM1311 📥 Download PDF (268.43kb)
Page 2 of MM1311 Page 3 of MM1311

MM1311 Application

  • Applications 1. Television 2. Other video equipment MITSUMI I2C BUS Control 4-Input 1-Output AV Switch MM1311 Equivalent Block Diagram MITSUMI
