MM1029

S Video Amplifier

MM1029 Features

* 1. 2. 3. 4. 5. 6. 7. 8. 9. Supports S-VHS Built-in superimpose function Built-in Y-C mix circuit Vertical/horizontal sync signal output pin Amp gain : 6dB for Y signal, 10dB for C signal and 6dB for composite signal Built-in clamp circuit (for Y signal only) Built-in monitor cut function 75Ω driver

MM1029 General Description

Pin no. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Pin name R C PBIN VSYNC OUT PBIN Chroma mute input CHROMA OUT GND SUG VIDEO OUT YOUT SUG Character input Monitor cut V insert YOR VIDEO IN VCC Anti-sag pin Composite video signal output pin Y (luminance) signal output pin Anti-sag pin Character input pi.

MM1029 Datasheet (144.57 KB)

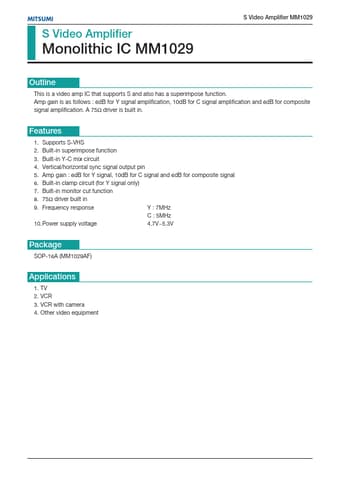

Preview of MM1029 PDF

Datasheet Details

Part number:

MM1029

Manufacturer:

ETC

File Size:

144.57 KB

Description:

S video amplifier.
MITSUMI S Video Amplifier MM1029 S Video Amplifier Monolithic IC MM1029 Outline This is a video amp IC that supports S and also has a superimpose f.
