MM1002 Datasheet - MITSUMI

Video Amplifier

MM1002 Features

* 1. 2. 3. 4. 5. 6. 7. 8. 9. Built-in superimpose function Built-in Y-C mix circuit Vertical/horizontal sync signal output pin Built-in clamp circuit (for Y signal only) 75Ω driver built in EVF driver built in External pin (Pin 14) allows fine tuning of character level Frequency response 5MHz Power su

MM1002 General Description

Pin no. 1 2 Pin name NC CHROMA IN Internal equivalent circuit diagram Pin no. 9 10 Pin name GND VIDEO OUT Internal equivalent circuit diagram 3 MIX 11 Anti-sag pin 4 C1 12 EVF 5 R 13 Character signal 6 H-SYNC 14 Character signal level 7 C2 15 VCC 8 V-SYNC 16 VIDEO IN MITSUMI.

MM1002 Datasheet (104.41 KB)

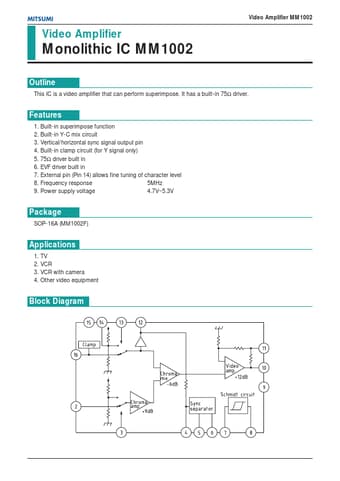

MM1002 Datasheet Preview — Preview of MM1002 PDF

Datasheet Details

Part number:

MM1002

Manufacturer:

MITSUMI

File Size:

104.41 KB

Description:

Video amplifier.
MITSUMI Video Amplifier MM1002 Video Amplifier Monolithic IC MM1002 Outline This IC is a video amplifier that can perform superimpose. It has a bui.
