MM1007 HBS-Compatible Driver and Receiver

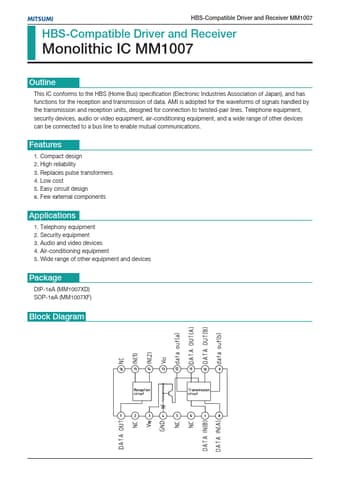

MITSUMI HBS-Compatible Driver and Receiver MM1007 HBS-Compatible Driver and Receiver Monolithic IC MM1007 Outline This IC conforms to the HBS (Home Bus) specification (Electronic Industries Association of Japan), and has functions for the reception and transmission of data. AMI is adopted for the waveforms of signals handled by the transmission and reception units, designed for connection to twisted-pair lines. Telephone equipment, security devices, audio or video equipment, air-conditioning .

MM1007 Features

* 1. Compact design 2. High reliability 3. Replaces pulse transformers 4. Low cost 5. Easy circuit design 6. Few external components Applications 1. Telephony equipment 2. Security equipment 3. Audio and video devices 4. Air-conditioning equipment 5. Wide range of other equipment and devices Package D
