MM1025 (MM1025 / MM1174) System Reset (with battery back-up) Monolithic IC

Pin No. 1 2 3 4 5 6 7 8 Pin name GND GND CS VBATT VOUT VCC TRB Function Forced switching and detection voltage adjustment External transistor drive Block Diagram Absolute Maximum Ratings (Ta=25°C) Symbol TOPR TSTG IL max. IL max. VCC Pd Rating -20~+70 40~+125 80 40 -0.3~+18 300 Units °C °C mA mA.

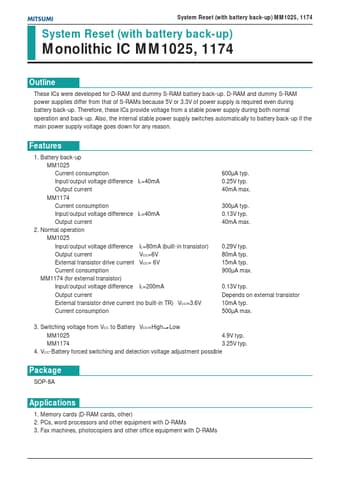

MITSUMI System Reset (with battery back-up) MM1025, 1174 System Reset (with battery back-up) Monolithic IC MM1025, 1174 Outline These ICs were developed for D-RAM and dummy S-RAM battery back-up. D-RAM and dummy S-RAM power supplies differ from that of S-RAMs because 5V or 3.3V of power supply is required even during battery back-up. Therefore, these ICs provide voltage from a stable power supply during both normal operation and back-up. Also, the internal stable power supply switches automat.

MM1025 Features

* 1. Battery back-up MM1025 Current consumption Input/output voltage difference IL=40mA Output current MM1174 Current consumption Input/output voltage difference IL=40mA Output current 2. Normal operation MM1025 Input/output voltage difference IL=80mA (built-in transistor) Output current VCC=6V Extern
