MM1099, System Reset

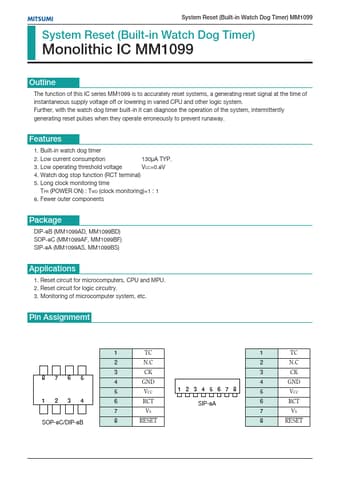

MITSUMI System Reset (Built-in Watch Dog Timer) MM1099 System Reset (Built-in Watch Dog Timer) Monolithic IC MM1099 Outline The function of this IC.
Pin No.

datasheet Preview Page 1 from Datasheet4u.com

MM1099_MITSUMIELECTRIC.pdf

MM1099 Datasheet Preview — Preview of MM1099 PDF

Datasheet Details

Part number:

MM1099

Manufacturer:

MITSUMI ELECTRIC

File Size:

171.75 KB

Description:

System Reset

Features

* 1. 2. 3. 4. 5. Built-in watch dog timer Low current consumption 130µA TYP. Low operating threshold voltage VCC=0.8V Watch dog stop function (RCT terminal) Long clock monitoring time TPR (POWER ON) : TWD (clock monitoring)=1 : 1 6. Fewer outer components Package DIP-8B (MM1099AD, MM1099BD) SOP-8C (M

Applications

* 1. Reset circuit for microcomputers, CPU and MPU. 2. Reset circuit for logic circuitry. 3. Monitoring of microcomputer system, etc. Pin Assignmemt 1 2 3 8 7 6 5 4 5 1 2 3 4 6 7 SOP-8C/DIP-8B 8 TC N. C CK GND VCC RCT VS - 1 2 3 4 1 2 3 4 5 6 7 8 SIP-8A 5 6 7 8 TC N. C CK GND VCC RCT VS - RESET R
