S Video Amplifier Monolithic IC MM1024

MM1024 Features

* 1. 2. 3. 4. 5. 6. 7. 8. Supports S-VHS Built-in superimpose function (character and border levels) Built-in Y-C mix circuit Vertical/horizontal sync signal output pin Amp gain : 6dB for Y signal, 10dB for C signal and 6dB for composite signal Built-in clamp circuit (for Y signal only) 75Ω driver bui

MM1024 General Description

Pin no. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Pin name R C PBIN VSYNC OUT PBIN Chroma mute input CHROMA OUT GND SUG VIDEO OUT YOUT SUG Character input Bordering input YRO VIDEO IN VCC Function Integrates sync signal and inputs to Schmidt circuit Chroma signal input pin for other than playback Verti.

MM1024 Datasheet (146.22 KB)

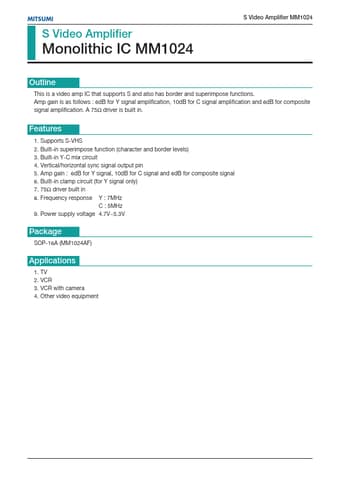

MM1024 Datasheet Preview — Preview of MM1024 PDF

Datasheet Details

Part number:

MM1024

Manufacturer:

ETC

File Size:

146.22 KB

Description:

S video amplifier monolithic ic mm1024.
MITSUMI S Video Amplifier MM1024 S Video Amplifier Monolithic IC MM1024 Outline This is a video amp IC that supports S and also has border and supe.
