MM1313 I2C BUS Control 5-Input 2-Output AV Switch

MITSUMI

Description

MITSUMI I2C BUS Control 5-Input 2-Output AV Switch MM1313 I2C BUS Control 5-Input 2-Output AV Switch Monolithic IC MM1313 Outline This IC is a 5-in.

📥 Download Datasheet

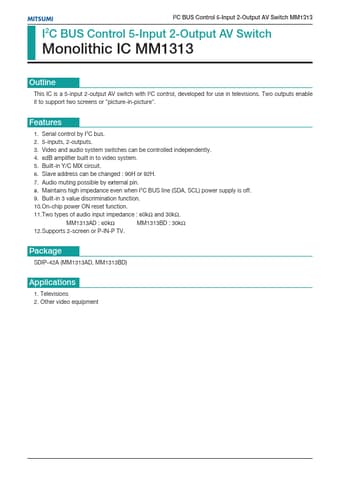

MM1313 Datasheet Preview — Preview of MM1313 PDF

Datasheet Specifications

Part number: MM1313
Manufacturer: MITSUMI
File Size: 312.83 KB
Datasheet: MM1313_MITSUMIELECTRIC.pdf
Description: I2C BUS Control 5-Input 2-Output AV Switch

Features

* 1. Serial control by I2C bus. 2. 5-inputs, 2-outputs. 3. Video and audio system switches can be controlled independently. 4. 6dB amplifier built in to video system. 5. Built-in Y/C MIX circuit. 6. Slave address can be changed : 90H or 92H. 7. Audio muting possible by external pin. 8. Maintains high

Applications

* 1. Televisions 2. Other video equipment MITSUMI I2C BUS Control 5-Input 2-Output AV Switch MM1313 Equivalent Block Diagram MITSUMI I2C BUS Control 5-Input 2-Output AV Switch MM1313 Pin Function Pin No. 41 1 7 13 27 3 9 31 5 11 29 Name MTV-V V1-V V2-V V3-V STV-V V1-Y V2-Y YIN1 V1-C V2-C CIN1 36
