MM3143G, MM3141C IC for 150mA Regulator

MM3143G Description

MITSUMI IC for 150mA Regulator MM314 N, 314 R IC for 150mA Regulator Monolithic IC MM314 N, 314 R Phased Out Products Outline This IC is an ultr.

MM3143G Features

* 1. I/O voltage difference 2. Output noise voltage 3. Recommended maximum output current 4. No-load current consumption 5. High ripple rejection rate 6. Output voltage rank 7. Output ON/OFF control function 0.22V typ. (IO=150mA, VOUT=3.0V) 30µVrms typ. 150mA max. 45µA typ. 70dB (1kHz, IOUT=30mA) 1.2

MM3143G Applications

* 1. Cordless telephone 2. Cellular telephone, PHS 3. Portable MD 4. Other battery-powered portable equipment Pin Assignment 54 1 23 SOT-25A (TOP VIEW) MM314 N 1 VDD 2 GND 3 CE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MM3143G, MM3141C. Please refer to the document for exact specifications by model.

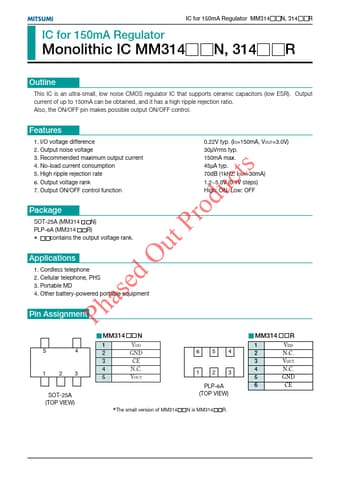

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MM3143G, MM3141C
Manufacturer
MITSUMI
File Size
363.68 KB
Datasheet
MM3141C-MITSUMI.pdf
Description
IC for 150mA Regulator
Note
This datasheet PDF includes multiple part numbers: MM3143G, MM3141C.
Please refer to the document for exact specifications by model.
