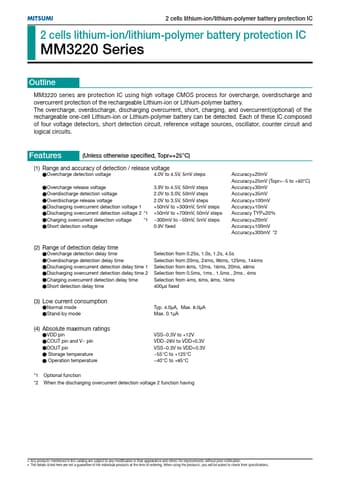

MM3220 Datasheet - MITSUMI

MM3220 - 2 cells lithium-ion/lithium-polymer battery protection

MITSUMI 2 cells lithium-ion/lithium-polymer battery protection IC 2 cells lithium-ion/lithium-polymer battery protection IC MM3220 Series Outline MM3220 series are protection IC using high voltage CMOS process for overcharge, overdischarge and overcurrent protection of the rechargeable Lithium-ion or Lithium-polymer battery. The overcharge, overdischarge, discharging overcurrent, short, charging, and overcurrent(optional) of the rechargeable one-cell Lithium-ion or Lithium-polymer battery can.

MM3220 Features

* (Unless otherwise speciﬁed, Topr=+25°C) (1) Range and accuracy of detection / release voltage Overcharge detection voltage 4.0V to 4.5V, 5mV steps Overcharge release voltage Overdischarge detection voltage Overdischarge release voltage Discharging overcurrent detection voltage 1 Discharging ove

MM3220-MITSUMI.pdf
