PT-57E22-R1, PT-57E19-R1 Datasheet - MITSUMI

PT-57E22-R1 Power Transformers

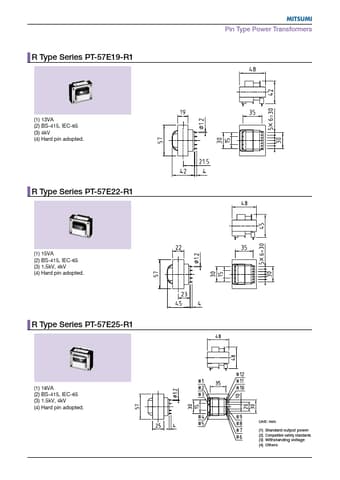

R Type Series PT-57E19-R1 (1) 13VA (2) BS-415, IEC-65 (3) 4kV (4) Hard pin adopted. R Type Series PT-57E22-R1 (1) 15VA (2) BS-415, IEC-65 (3) 1.5kV, 4kV (4) Hard pin adopted. R Type Series PT-57E25-R1 (1) 18VA (2) BS-415, IEC-65 (3) 1.5kV, 4kV (4) Hard pin adopted. MITSUMI Pin Type Power Transformers Unit: mm (1) Standard output power (2) Compatible safety standards (3) Withstanding voltage (4) Others .

PT-57E19-R1-MITSUMI.pdf

This datasheet PDF includes multiple part numbers: PT-57E22-R1, PT-57E19-R1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PT-57E22-R1, PT-57E19-R1

Manufacturer:

MITSUMI

File Size:

56.83 KB

Description:

Power transformers.

Note:

This datasheet PDF includes multiple part numbers: PT-57E22-R1, PT-57E19-R1.
Please refer to the document for exact specifications by model.
