MA8121F - USB 2.0 SD/MMC Card Reader

Product Overview

Datasheet Details

Part number	MA8121F
Manufacturer	MOAI
File Size	378.25 KB
Description	USB 2.0 SD/MMC Card Reader
Datasheet	MA8121F Datasheet

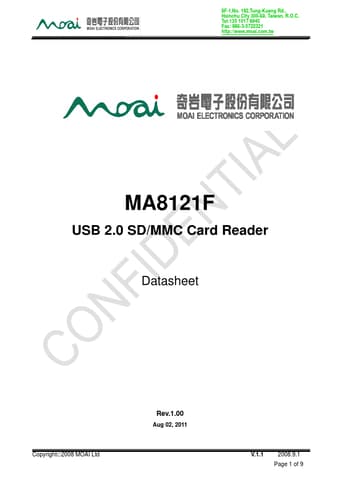

Additional preview pages of the MA8121F datasheet.

Product details

Description

Preliminary release Ordering Information Product Name MA8121F MA8121F MA8121F Type Good Die CP Wafer 28SSOP Copyright©2008 MOAI Ltd V.1.1 2008.9.1 Page 2 of 9 8F-1,No.192,Tung-Kuang Rd., Hsinchu City 300-69, Taiwan, R.O.C.Tel:135 1017 9940 Fax: 886-3-5722321 http://www.moai.com.tw Table of Contents 1. Revision History -----------------------------------------------------------------------------------------------page 2 2. Introduction 2.1 MA8121F General Description ----------------------

Features

USB Fully compatible with USB 2.0/1.1 specification Support USB 2.0 specification for 480Mbit/sec and 12Mbit/sec operation USB Device Class Definition for Mass Storage , Bulk-Transport v1.0 USB 2.0 Bus Power device spec. compliance Endpoint: Endpoint 0: 64 bytes control transfer. Endpoint 1: 512 bytes bulk transfer for IN transaction. Endpoint 2: 512 bytes bulk transfer for OUT transaction.
Single Slot support for MMC/SD/MS card.
MMC/SD card support .
