24HS1002N, 24HS1001N - STEPPING MOTOR

📥 Download Datasheet

24HS1002N Datasheet Preview — This datasheet PDF includes multiple part numbers: 24HS1002N, 24HS1001N. Please refer to the document for exact specifications by model.

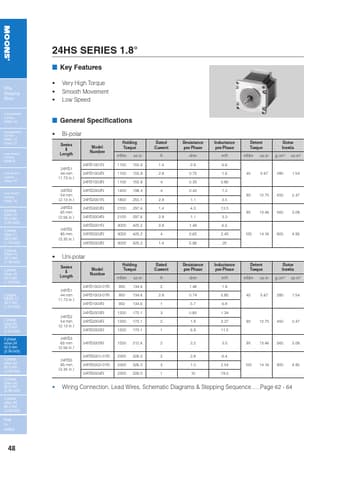

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	24HS1002N, 24HS1001N
Manufacturer	MOONS
File Size	163.01 KB
Description	STEPPING MOTOR
Datasheet	24HS1001N-MOONS.pdf
Note	This datasheet PDF includes multiple part numbers: 24HS1002N, 24HS1001N. Please refer to the document for exact specifications by model.

24HS1002N Product details

Features

Very High Torque.
Smooth Movement.
Low Speed I General Speciﬁcations.
Bi-polar Series & Length Model Number 24HS1 44 mm (1.73 in. ) 24HS2 54 mm (2.13 in. ) 24HS3 65 mm (2.56 in. ) 24HS5 85 mm (3.35 in. ) 24HS1001N 24HS1002N 24HS1003N 24HS2002N 24HS2001N 24HS3003N 24HS3004N 24HS5001N 24HS5002N 24HS5003N Holding Torque mNm oz-in 1100 155.9 1100 155.9 1100 155.9 1400 198.4 1800 255.1 2100 297.6 2100 297.
