24HS1442, 24HS4428 Datasheet - MotionKing

24HS1442 2 Phase Hybrid Stepper Motor

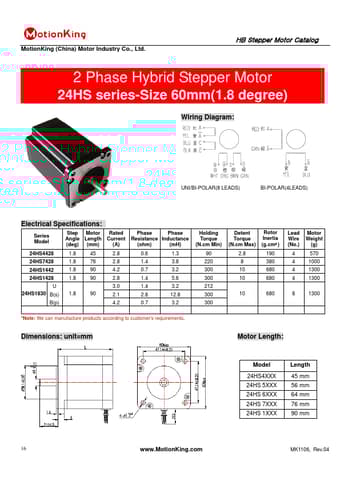

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 24HS series-Size 60mm(1.8 degree) Wiring Diagram: UNI/BI-POLAR(8 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Step Motor Rated Phase Phase Angle Length Current Resistance Inductance (deg) (mm) (A) (ohm) (mH) 24HS4428 1.8 45 2.8 0.6 1.3 24HS7428 1.8 76 2.8 1.4 3.8 24HS1442 1.8 90 4.2 0.7 3.2 24HS1428 1.8 90 2.8 1.4 5.6 U 24HS1830 B(s) 1.8 90 3..

24HS4428-MotionKing.pdf

24HS1442 Datasheet Preview — This datasheet PDF includes multiple part numbers: 24HS1442, 24HS4428. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

24HS1442, 24HS4428

Manufacturer:

MotionKing

File Size:

92.42 KB

Description:

2 phase hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 24HS1442, 24HS4428.
Please refer to the document for exact specifications by model.
