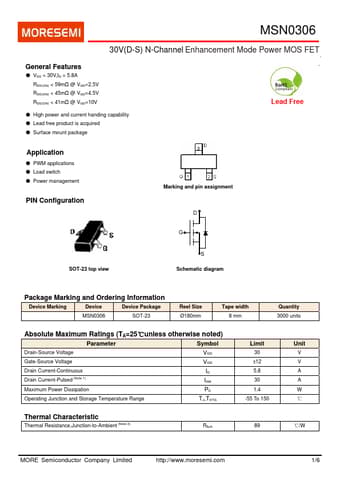

MSN0306 Datasheet, Mosfet, MORESEMI

✔ MSN0306 Features

VDS = 30V,ID = 5.8A RDS(ON) < 59mΩ @ VGS=2.5V RDS(ON) < 45mΩ @ VGS=4.5V RDS(ON) < 41mΩ @ VGS=10V
High power and current handing capability
Lead free product is acqu

✔ MSN0306 Application

Load switch
Power management PIN Configuration Marking and pin assignment D G SOT-23 top view S Sche

PDF File Details

Part number:

MSN0306

Manufacturer:

MORESEMI

File Size:

526.33kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

📥 Download PDF (526.33kb)
