MSN0325R, N-Channel MOSFET

MSN0325R 30V(D-S) N-Channel Enhancement Mode Power MOS FET General .

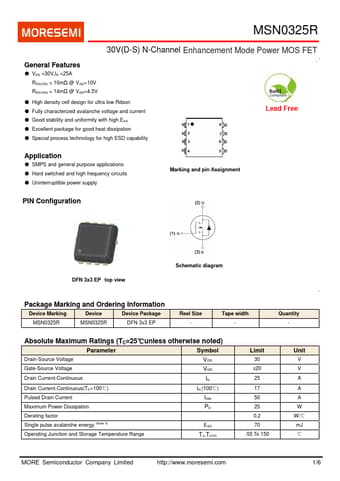

datasheet Preview Page 1 from Datasheet4u.com

MSN0325R-MORESEMI.pdf

MSN0325R Datasheet Preview — Preview of MSN0325R PDF

Datasheet Details

Part number:

MSN0325R

Manufacturer:

MORESEMI

File Size:

507.47 KB

Description:

N-Channel MOSFET

Features

* VDS =30V,ID =25A RDS(ON) < 10mΩ @ VGS=10V RDS(ON) < 14mΩ @ VGS=4.5V
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipation
* Special proce

Applications

* Hard switched and high frequency circuits
* Uninterruptible power supply Marking and pin Assignment PIN Configuration DFN 3x3 EP top view Schematic diagram Package Marking and Ordering Information Device Marking Device Device Package MSN0325R MSN0325R DFN 3x3 EP Reel Size - Ta
