A0515S-1WR3

DC/DC Converter

A0515S-1WR3 Features

* Continuous short-circuit protection

* No-load input current as low as 5mA

* Operating temperature range: -40℃ ~ +105℃

* High efficiency up to 85%

* I/O isolation test voltage 1.5k VDC

* Industry standard pin-out

* SIP package

* UL62368, EN62368 approved A05_S-1WR3

A0515S-1WR3 General Description

of reflected ripple current test method. Unit mA VDC Output Specifications Item Operating Conditions Voltage Accuracy Linear Regulation Input voltage change: ±1% 3.3VDC output Others Min. Typ. Max. Unit See output regulation curve(Fig. 1)

*

* 1.5 %

*

A0515S-1WR3 Datasheet (943.85 KB)

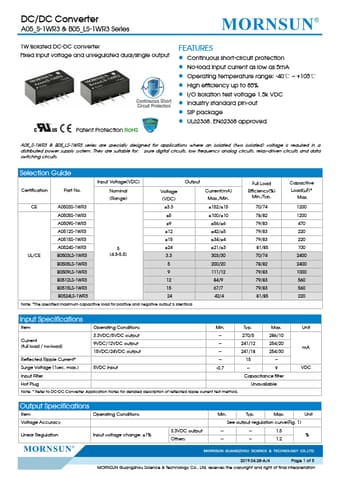

Preview of A0515S-1WR3 PDF

Datasheet Details

Part number:

A0515S-1WR3

Manufacturer:

MORNSUN

File Size:

943.85 KB

Description:

Dc/dc converter.
DC/DC Converter A05_S-1WR3 & B05_LS-1WR3 Series 1W isolated DC-DC converter Fixed input voltage and unregulated dual/single output Patent Protection .
