A0515S-2WR2 Datasheet, Converter, MORNSUN

A0515S-2WR2 Features

• Converter z Continuous short-circuit protection z Operating temperature range: -40℃ to +105℃ z High efficiency up to 86% z High power density z Miniature SIP package z Isolation voltage: 1.5K VDC

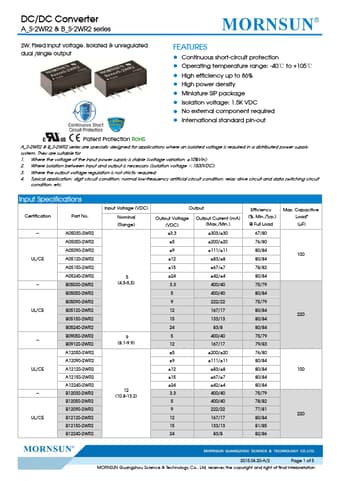

PDF File Details

Part number:

A0515S-2WR2

Manufacturer:

MORNSUN

File Size:

245.22kb

Download:

📄 Datasheet

Description:

Dc/dc converter.

A0515S-2WR2 Application

• Applications where an isolated voltage is required in a distributed power supply system. They are suitable for 1. Where the voltage of the input pow
