B0505LS-1WR3

DC/DC Converter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor MORNSUN B0505LS-1WR3 DC DC CONVERTER 5V 1W DigiKey 18582 25 units
$0.83

B0505LS-1WR3 Datasheet (941.18 KB)

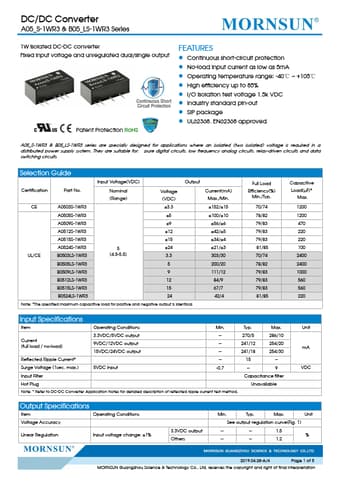

Preview of B0505LS-1WR3 PDF

Datasheet Details

Part number:

B0505LS-1WR3

Manufacturer:

MORNSUN

File Size:

941.18 KB

Description:

Dc/dc converter.
DC/DC Converter A05_S-1WR3 & B05_LS-1WR3 Series 1W isolated DC-DC converter Fixed input voltage and unregulated dual/single output Patent Protection .

B0505LS-1WR3 Features

* Continuous short-circuit protection

* No-load input current as low as 5mA

* Operating temperature range: -40℃ ~ +105℃

* High efficiency up to 85%

* I/O isolation test voltage 1.5k VDC

* Industry standard pin-out

* SIP package

* UL62368, EN62368 approved A05_S-1WR3

B0505LS-1WR3 General Description

of reflected ripple current test method. Unit mA VDC Output Specifications Item Operating Conditions Voltage Accuracy Linear Regulation Input voltage change: ±1% 3.3VDC output Others Min. Typ. Max. Unit See output regulation curve(Fig. 1)

*

* 1.5 %

*
