B0912S-2WR2, B0905S-2WR2 DC/DC Converter

MORNSUN

B0912S-2WR2 Description

DC/DC Converter A_S-2WR2 & B_S-2WR2 series 2W, Fixed input voltage, isolated & unregulated dual /single output .

B0912S-2WR2 Features

* z Continuous short-circuit protection z Operating temperature range: -40℃ to +105℃ z High efficiency up to 86% z High power density z Miniature SIP package z Isolation voltage: 1.5K VDC z No external component required z International standard pin-out Patent Protection RoHS A_S-2WR2 & B_S-2WR2 seri

B0912S-2WR2 Applications

* where an isolated voltage is required in a distributed power supply system. They are suitable for 1. Where the voltage of the input power supply is stable (voltage variation: ±10%Vin); 2. Where isolation between input and output is necessary (isolation voltage ≤1500VDC); 3. Where the output voltage

📥 Download Datasheet

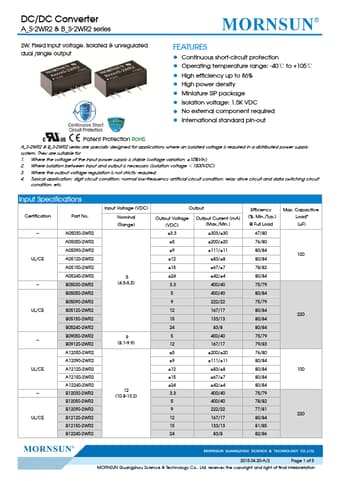

B0912S-2WR2 Datasheet Preview — This datasheet PDF includes multiple part numbers: B0912S-2WR2, B0905S-2WR2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: B0912S-2WR2, B0905S-2WR2
Manufacturer: MORNSUN
File Size: 241.54 KB
Datasheet: B0905S-2WR2-MORNSUN.pdf
Description: DC/DC Converter
Note: This datasheet PDF includes multiple part numbers: B0912S-2WR2, B0905S-2WR2.
Please refer to the document for exact specifications by model.
