B0922J7575A50HF - Ultra Low Profile 0805 Balun 75 ohm to 75 ohm Balanced

Anaren Microwave

📥 Download Datasheet

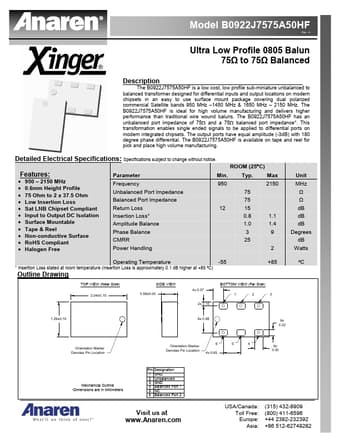

B0922J7575A50HF Datasheet Preview — Preview of B0922J7575A50HF PDF

Datasheet Details

Part number	B0922J7575A50HF
Manufacturer	Anaren Microwave
File Size	3.28 MB
Description	Ultra Low Profile 0805 Balun 75 ohm to 75 ohm Balanced
Datasheet	B0922J7575A50HF-AnarenMicrowave.pdf

B0922J7575A50HF Product details

Description

The B0922J7575A50HF is a low cost, low profile sub-miniature unbalanced to balanced transformer designed for differential inputs and output locations on modern chipsets in an easy to use surface mount package covering dual polarized commercial Satellite bands 950 MHz 1450 MHz & 1650 MHz 2150 MHz.

Features

950.
2150 MHz 0.6mm Height Profile 75 Ohm to 2 x 37.5 Ohm Low Insertion Loss Sat LNB Chipset Compliant Input to Output DC Isolation Surface Mountable Tape & Reel Non-conductive Surface RoHS Compliant Halogen Free Parameter Frequency Unbalanced Port Impedance Balanced Port Impedance Return Loss Insertion Loss.
Amplitude Balance Phase Balance CMRR Power Handling Operating Te.
