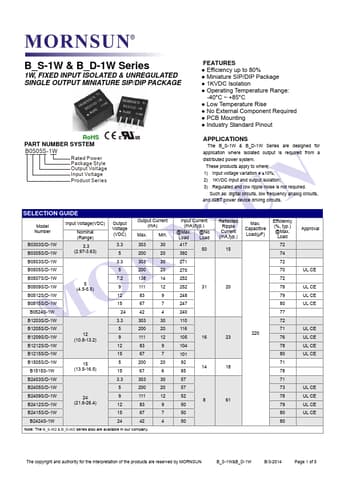

B1209D-1W Datasheet, Sip/dip, MORNSUN

B1209D-1W Features

• Sip/dip
• Efficiency up to 80%
• Miniature SIP/DIP Package
• 1KVDC Isolation
• Operating Temperature Range: -40°C ~ +85°C
• Low Temperature Rise

PDF File Details

Part number:

B1209D-1W

Manufacturer:

MORNSUN

File Size:

305.43kb

Download:

📄 Datasheet

Description:

Single output miniature sip/dip.

B1209D-1W Application

• Applications The B_S-1W & B_D-1W Series are designed for application where isolated output is required from a distributed power system. These produc
