F0503LT-1WR3 Datasheet - MORNSUN

F0503LT-1WR3, DC/DC Converter

DC/DC Converter E05_LT-1WR3 & F05_LT-1WR3 Series 1W isolated DC-DC converter Fixed input voltage, unregulated dual/single output .
of Reflected ripple current testing method.

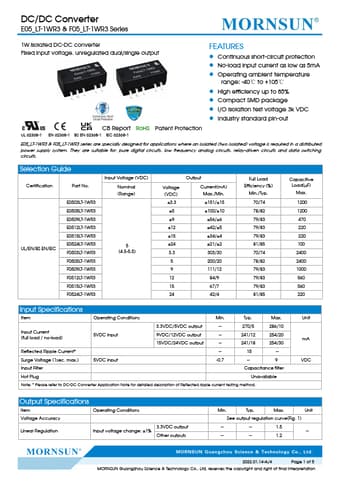

datasheet Preview Page 1 from Datasheet4u.com

F0503LT-1WR3-MORNSUN.pdf

F0503LT-1WR3 Datasheet Preview — Preview of F0503LT-1WR3 PDF

Datasheet Details

Part number:

F0503LT-1WR3

Manufacturer:

MORNSUN

File Size:

1.65 MB

Description:

DC/DC Converter

Features

* Continuous short-circuit protection
* No-load input current as low as 5mA
* Operating ambient temperature range: -40℃ to +105℃
* High efficiency up to 85%
* Compact SMD package
* I/O isolation test voltage 3k VDC
* Industry standard pin-out CB Report RoHS Patent Protec

Applications

* where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Certification Part No. UL/EN/BS EN/IEC E0503LT-1WR3 E0505LT-
