F0505S-1WR3, F0503S-1WR3, DC/DC Converter

DC/DC Converter E05_S-1WR3& F05_S-1WR3 series 1W isolated DC-DC converter Fixed input voltage and unregulated dual/single output .
of reflected ripple current test method.

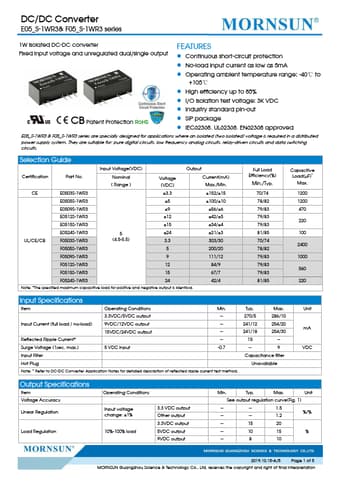

datasheet Preview Page 1 from Datasheet4u.com

F0503S-1WR3-MORNSUN.pdf

F0505S-1WR3 Datasheet Preview — This datasheet PDF includes multiple part numbers: F0505S-1WR3, F0503S-1WR3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

F0505S-1WR3, F0503S-1WR3

Manufacturer:

MORNSUN

File Size:

793.21 KB

Description:

DC/DC Converter

Note:

This datasheet PDF includes multiple part numbers: F0505S-1WR3, F0503S-1WR3.
Please refer to the document for exact specifications by model.

Features

* Continuous short-circuit protection
* No-load input current as low as 5mA
* Operating ambient temperature range: -40℃ to +105℃ CB Patent Protection RoHS
* High efficiency up to 85%
* I/O isolation test voltage: 3K VDC
* Industry standard pin-out
* SIP package
* IE

Applications

* where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage(VDC) Output Certification Part No. Nominal (
