H0503S-2W

The H0503S-2W is DC/DC Converter designed by MORNSUN.

Product Overview

MORNSUN

📥 Download Datasheet

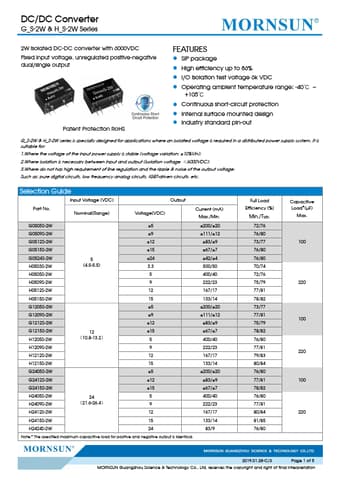

H0503S-2W DC/DC Converter by MORNSUN - Datasheet Preview — Datasheet preview – H0503S-2W

Datasheet Details

Part number	H0503S-2W
Manufacturer	MORNSUN
File Size	1.12 MB
Description	DC/DC Converter
Datasheet	H0503S-2W-MORNSUN.pdf
Additional preview pages of the H0503S-2W datasheet.

Product details

Features

SIP package.
High efficiency up to 86%.
I/O isolation test voltage 6k VDC.
Operating ambient temperature range: -40℃ ~ +105℃.
Continuous short-circuit protection.
Internal surface mounted design.
Industry standard pin-out G_S-2W & H_S-2W series is specially designed for.
