H0505S-2W

DC/DC Converter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor MORNSUN H0505S-2WR2 ISOLATED MODULE DC DC CONVERTER1 DigiKey 3 1 units
$3.06

H0505S-2W Datasheet (1.12 MB)

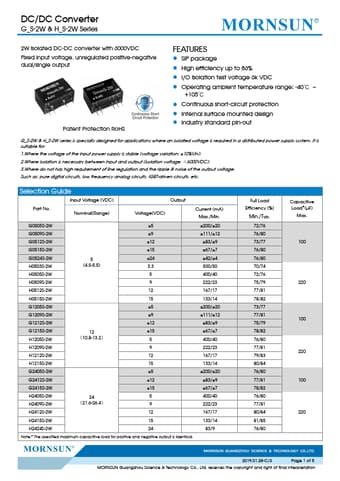

Preview of H0505S-2W PDF Datasheet

Datasheet Details

Part number:

H0505S-2W

Manufacturer:

MORNSUN

File Size:

1.12 MB

Description:

Dc/dc converter

H0505S-2W Features

* SIP package

* High efficiency up to 86%

* I/O isolation test voltage 6k VDC

* Operating ambient temperature range: -40℃ ~ +105℃

* Continuous short-circuit protection

* Internal surface mounted design

* Industry standard pin-out G_S-2W & H_S-2W series is specially desig
