| Image | Manufacturer | B2B MPN | Description | Distributor | Stock | Quantity | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
 |
MORNSUN | H2405S-2WR3 | ISOLATED MODULE DC DC CONVERTER1 | DigiKey | 111 | 1 units |
$2.31
|
🛒 Buy Now |
H2405S-2W
MORNSUN
1.12 MB
Dc/dc converter.

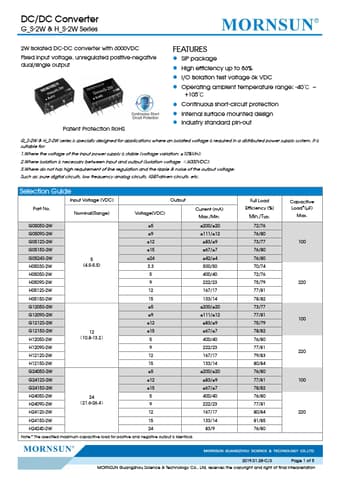

DC/DC Converter
G_S-2W & H_S-2W Series
2W isolated DC-DC converter with 6000VDC Fixed input voltage, unregulated positive-negative dual/single output.
* SIP package
* High efficiency up to 86%
* I/O isolation test voltage 6k VDC
* Operating ambient temperature range: -40℃ ~ +105℃
* Continuous short-circuit protection
* Internal surface mounted design
* Industry standard pin-out G_S-2W & H_S-2W series is specially desig
