H2405S-2WR2 Datasheet - MORNSUN

DC/DC Converter

H2405S-2WR2 Features

* Fixed input voltage and unregulated single or dual output

* SIP package High efficiency up to 84%

* Reinforced insulation

* Patient leakage current 2µA max.

* I/O isolation test voltage 4.2k VAC or 6k VDC

* Operating ambient temperature: -40℃ ~ +85℃

* Internal s

H2405S-2WR2 General Description

of Reflected ripple current testing method. Unit mA VDC A Output Specifications Item Operating Conditions Min. Typ. Max. Unit Voltage Accuracy① See Typical Characteristic Curves (Fig. 1) Linear Regulation Input voltage change: ±1% * * ±1.2 * 5VDC output .

H2405S-2WR2 Datasheet (1.08 MB)

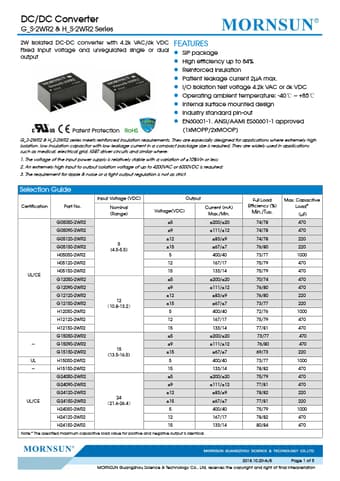

Preview of H2405S-2WR2 PDF

Datasheet Details

Part number:

H2405S-2WR2

Manufacturer:

MORNSUN

File Size:

1.08 MB

Description:

Dc/dc converter.
