IB2412XT-1WR2, IB2405XT-1WR2 - DC/DC Module Power Supply

IB2412XT-1WR2 Description

DC/DC Module Power Supply IB_XT-1WR2 series 1W isolated DC-DC converter with Fixed Input Voltage and Regulated Single Output .

IB2412XT-1WR2 Features

* Continuous short-circuit protection
* High efficiency up to 75%
* Operating ambient temperature range -40℃ to +85℃ Patent Protection RoHS
* I/O isolation test voltage 1.5k VDC
* Miniature SMD package
* No external components required
* Industry standard pin-out

IB2412XT-1WR2 Applications

* with a tight line and load regulation requirement combined with low ripple & noise on the output. Selection Guide Certification. Part No. IB0503XT-1WR2 IB0505XT-1WR2 IB0512XT-1WR2 IB0515XT-1WR2 CE IB1205XT-1WR2 IB1212XT-1WR2 IB1215XT-1WR2 IB2405XT-1WR2 IB2412XT-1WR2 Input Voltage (VDC)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IB2412XT-1WR2, IB2405XT-1WR2. Please refer to the document for exact specifications by model.

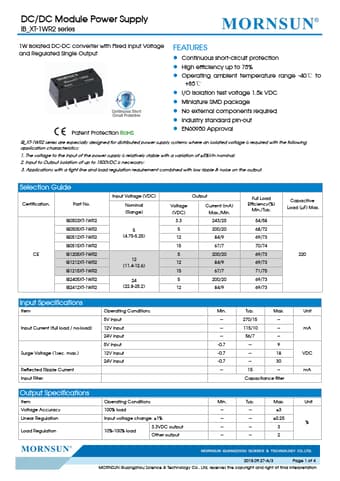

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IB2412XT-1WR2, IB2405XT-1WR2
Manufacturer
MORNSUN
File Size
920.27 KB
Datasheet
IB2405XT-1WR2-MORNSUN.pdf
Description
DC/DC Module Power Supply
Note
This datasheet PDF includes multiple part numbers: IB2412XT-1WR2, IB2405XT-1WR2.
Please refer to the document for exact specifications by model.
