M1200A - ON/OFF ONE SHOT LED FLASH IC

Datasheet Summary

Features

  • ‧ OSH：ONE-SHOT. ‧ ON/OFF：ON/OFF toggle. ‧ FLASH RATE：1~16 Hz mask optional. ‧ Duty：1/2 ~ 1/64 mask optional. ‧ T：1 ~ 32 pulses mask optional.

📥 Download Datasheet

Datasheet preview – M1200A

Datasheet Details

Part number M1200A
Manufacturer MOSDESIGN
File Size 128.42 KB
Description ON/OFF ONE SHOT LED FLASH IC
Datasheet download datasheet M1200A Datasheet
Additional preview pages of the M1200A datasheet.

📁 Similar Datasheet

  • M1200 - Mercury TM1200 PCB-Mount Analog Encoders (GSI Group)
  • M120 - NON VOLATILE RANDOM ACCESS MEMORY (SGS)
  • M120-2 - NON VOLATILE RANDOM ACCESS MEMORY (SGS)
  • M1204L - 4A Step-down DC-DC Power SoC (iModule)
  • M1206 - 6A Step-down DC-DC Power SoC (iModule)
  • M1206EFR - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
  • M1206L - 6A Step-down DC-DC Power SoC (iModule)
  • M1206TC - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
  • M1206TF - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
  • M120D - MOS Integrated Circuits (SGS)
Other Datasheets by MOSDESIGN
  • M12 - 12-KEYS PIANO 8/12 DEMO TUNES IC

Full PDF Text Transcription

Click to expand full text

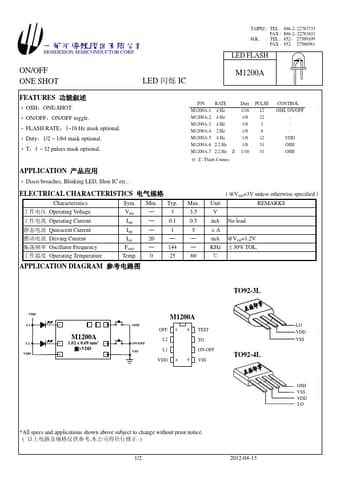

MOSDESIGN SEMICONDUCTOR CORP. TAIPEI : TEL : 886-2- 22783733 FAX : 886-2- 22783633 H.K. : TEL : 852- 27569109 FAX : 852- 27566961 LED FLASH ON/OFF ONE SHOT LED IC M1200A FEATURES ‧ OSH：ONE-SHOT. ‧ ON/OFF：ON/OFF toggle. ‧ FLASH RATE：1~16 Hz mask optional. ‧ Duty：1/2 ~ 1/64 mask optional. ‧ T：1 ~ 32 pulses mask optional. APPLICATION ‧ Disco broaches, Blinking LED, Shoe IC etc.. ELECTRICAL CHARACTERISTICS Characteristics Operating Voltage Operating Current Quiescent Current Driving Current Oscillator Frequency Operating Temperature Sym. VDD IOP ISB IOL FOSC Temp. Min. ─ ─ ─ 20 ─ 0 APPLICATION DIAGRAM Typ. 3 0.1 1 ─ 144 25 P/N RATE M1200A-1 4 Hz M1200A-2 4 Hz M1200A-3 4 Hz M1200A-4 2 Hz M1200A-5 4 Hz M1200A-6 2.2 Hz M1200A-7 2.2 Hz Z ※ Z : Flash 4 times.
