M1206 - 6A Step-down DC-DC Power SoC

Datasheet Summary

Description

The M1206 is a 6A step-down switching mode Power SoC (System on Chip) with integrated power MOSFETs, inductor and BST capacitor in an LGA-19 package.

The input voltage ranges from 4.5V to 16V, and the frequency of Power SoC can be fixed at either 600kHz or 1.2MHz.

Features

  • Wide Input Voltage from 4.5V to 16V.
  • Adjustable Output Voltage from 0.6V to 13V.
  • Continuous Output Current.
  • Output ＜ 3.3V, 6A Continuous Output Current.
  • Output ≥ 3.3V, 5A Continuous, 6A Peak Output Current.
  • Two selectable switching frequencies: 600kHz and 1.2MHz.
  • Selectable light load mode.
  • Power Saving Mode (PSM) for good light load efficiency.
  • Forced Continuous Conduction Mode (FCCM) for better EMI performance.
  • Stable with low ESR Ceramic Capa.

📥 Download Datasheet

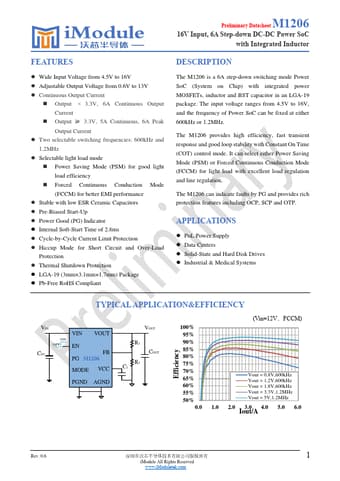

Datasheet preview – M1206

Datasheet Details

Part number M1206
Manufacturer iModule
File Size 1.36 MB
Description 6A Step-down DC-DC Power SoC
Datasheet download datasheet M1206 Datasheet
Additional preview pages of the M1206 datasheet.

📁 Similar Datasheet

  • M1206EFR - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
  • M1206TC - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
  • M1206TF - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
  • M120 - NON VOLATILE RANDOM ACCESS MEMORY (SGS)
  • M120-2 - NON VOLATILE RANDOM ACCESS MEMORY (SGS)
  • M1200 - Mercury TM1200 PCB-Mount Analog Encoders (GSI Group)
  • M1200A - ON/OFF ONE SHOT LED FLASH IC (MOSDESIGN)
  • M120D - MOS Integrated Circuits (SGS)
  • M120DB1 - MOS Integrated Circuits (SGS)
  • M120DF1 - MOS Integrated Circuits (SGS)
Other Datasheets by iModule
  • M1206L - 6A Step-down DC-DC Power SoC
  • M1204L - 4A Step-down DC-DC Power SoC
  • M1210 - 10A Step-down DC-DC Power SoC
  • M1244 - buck-type magnetic integration power SoC

Full PDF Text Transcription

Click to expand full text
M1206 Preliminary Datasheet 16V Input, 6A Step-down DC-DC Power SoC with Integrated Inductor FEATURES ⚫ Wide Input Voltage from 4.5V to 16V ⚫ Adjustable Output Voltage from 0.6V to 13V ⚫ Continuous Output Current ◼ Output ＜ 3.3V, 6A Continuous Output Current ◼ Output ≥ 3.3V, 5A Continuous, 6A Peak Output Current ⚫ Two selectable switching frequencies: 600kHz and 1.2MHz ⚫ Selectable light load mode ◼ Power Saving Mode (PSM) for good light load efficiency ◼ Forced Continuous Conduction Mode (FCCM) for better EMI performance ⚫ Stable with low ESR Ceramic Capacitors ⚫ Pre-Biased Start-Up ⚫ Power Good (PG) Indicator ⚫ Internal Soft-Start Time of 2.
