2KBP01M, 2KBP005M - 2.0A GLASS PASSIVATED BRIDGE RECTIFIER

MOSPEC

📥 Download Datasheet

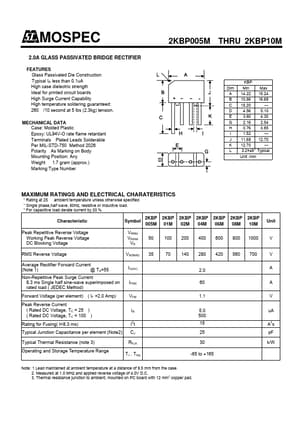

2KBP01M Datasheet Preview — This datasheet PDF includes multiple part numbers: 2KBP01M, 2KBP005M. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2KBP01M, 2KBP005M
Manufacturer	MOSPEC
File Size	78.61 KB
Description	2.0A GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	2KBP005M-MOSPEC.pdf
Note	This datasheet PDF includes multiple part numbers: 2KBP01M, 2KBP005M. Please refer to the document for exact specifications by model.

2KBP01M Product details

Features

Glass Passivated Die Construction Typical IR less than 0.1uA High case dielectric strength Ideal for printed circuit boards High Surge Current Capability High temperature soldering guaranteed: 260 /10 second at 5 lbs (2.3kg) tension.
