MB4F - SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS

MB4F Description

MOSPEC MB05F Thru MB10F .157(4.0) .142(3.6) .043(1.1) .027(0.7) .276(7.0) .260(6.6) SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS .

MB4F Features

* Rating to 1000V PRV
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded plastic technique results in inexpensive product
* Lead tin plated copper MECHANICAL DATA
* Polarity:Symbol molded on body
* Mounting position :Any REVERSE VOLTAGE - 50 to 100

📥 Download Datasheet

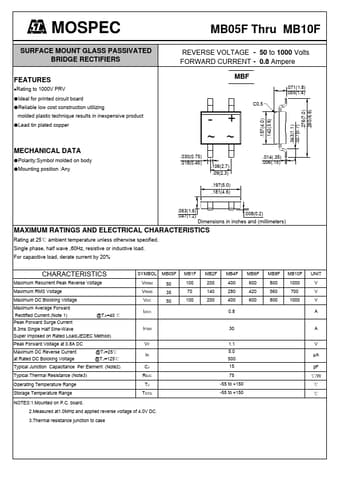

Preview of MB4F PDF
datasheet Preview Page 2

Datasheet Details

Part number
MB4F
Manufacturer
MOSPEC
File Size
108.05 KB
Datasheet
MB4F-MOSPEC.pdf
Description
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS
