ADC111 Single & Dual Output DC/DC Converters

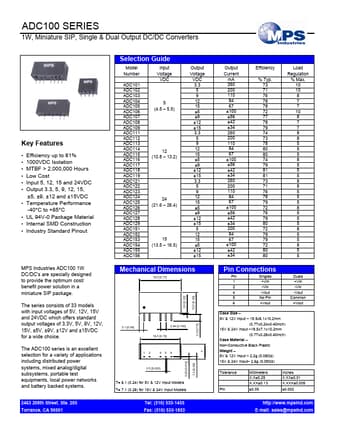

www.DataSheet.co.kr ADC100 SERIES 1W, Miniature SIP, Single & Dual Output DC/DC Converters Selection Guide Model Number ADC101 ADC102 ADC103 ADC104 ADC105 ADC106 ADC107 ADC108 ADC109 ADC111 ADC112 ADC113 ADC114 ADC115 ADC116 ADC117 ADC118 ADC119 ADC121 ADC122 ADC123 ADC124 ADC125 ADC126 ADC127 ADC128 ADC129 ADC151 ADC152 ADC153 ADC154 ADC155 ADC156 Input Voltage VDC Output Voltage VDC 3.3 5 9 12 15 ±5 ±9 ±12 ±15 3.3 5 9 12 15 ±5 ±9 ±12 ±15 3.3 5 9 12 15 ±5 ±9 ±12 ±15 5 12 15 ±5 ±12 ±15 Output C.

ADC111 Features

* Efficiency up to 81% 1000VDC Isolation MTBF > 2,000,000 Hours Low Cost Input 5, 12, 15 and 24VDC Output 3.3, 5, 9, 12, 15, ±5, ±9, ±12 and ±15VDC Temperature Performance -40°C to +85°C UL 94V-0 Packag

ADC111 Datasheet (222.83 KB)
