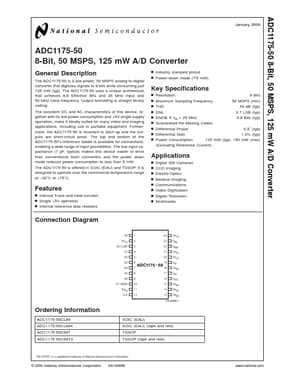

Preview of ADC1175-50 PDF
ADC1175-50 Datasheet Preview Page 2 ADC1175-50 Datasheet Preview Page 3

Datasheet Details

Part number:

ADC1175-50

Manufacturer:

National Semiconductor

File Size:

374.38 KB

Description:

8-bit/ 50 msps/ 125 mw a/d converter.

ADC1175-50, 8-Bit/ 50 MSPS/ 125 mW A/D Converter

The ADC1175-50 is a low power, 50 MSPS analog-to-digital converter that digitizes signals to 8 bits while consuming just 125 mW (typ).

The ADC1175-50 uses a unique architecture that achieves 6.8 Effective Bits and 25 MHz input and 50 MHz clock frequency.

Output formatting is straight binary coding.

ADC1175-50 Features

* n Internal Track-and-Hold function n Single +5V operation n Internal reference bias resistors Connection Diagram DS100896-1 Ordering Information ADC1175-50CIJM ADC1175-50CIJMX ADC1175-50CIMT ADC1175-50CIMTX SOIC (EIAJ) SOIC (EIAJ) (tape and reel) TSSOP TSSOP (tape and reel) TRI-STATE ® is a regi
